INTRODUCTION

Additive manufacturing (AM) is causing a fundamental manufacturing paradigm shift that is changing how aircraft are now maintained and sustained.  Sustaining an aging aerospace fleet is an enormous challenge.  The U.S. Department of Defense maintains nearly $100 billion worth of spare parts and has to balance avoiding excess inventory [1] while simultaneously preventing stock-out [2].  A large 747-type aircraft can have nearly 6 million individual parts produced by a global supply chain of approximately 550 companies, some of which may not exist a decade from now [3].  Sustainment organizations struggle with long lead times, resulting in maintenance delays or grounded aircraft.  For example, the Oklahoma City Air Logistics Complex reported lead times as long as 800 days for constant speed drive castings [4].  Meanwhile, at the end of 2016, 29% of all U.S. Marine Corps F/A-18 Hornets were grounded pending spare parts [5].

AM emerged as a potential solution to reduce both lead times and inventory costs.  The technology is well suited for fabricating low-volume, customized, and complex components [2, 6–8].  An analysis of the global aerospace maintenance, repair, and overhaul market identified that if 15% of replacement parts could be produced with AM, over $1 billion in materials and transportation-related savings could be realized; commercial airlines would see $250 million in additional liquidity as a result of reduced inventory costs [9].  Moreover, these analyses were only predicated on printed replacement parts and did not include the additional benefits of three-dimensional (3D) printed tooling, fixtures, jigs, or prototypes [9].

AM is also beneficial for part count reduction and weight savings.  Since AM creates parts layer by layer, complex shapes can be designed and fabricated.  This would not be possible with conventional methods [7].  For example, a geometrically-complex part fabricated traditionally may be designed as multiple parts which are then joined or assembled.  Alternatively, by using AM, this assembly can be consolidated into a single piece and reduce assembly costs.  Another example would be reducing the part’s weight by only depositing material where it is required for strength and stiffness.  Mathematical tools can optimize the topology (i.e., shape) [10] or integrate lattice structures [11] in order to reduce weight without compromising performance.

The aerospace, medical, and automotive industries adopted AM early [12].  In 2017, the aerospace sector comprised nearly 19% of the AM market [13].  In the U.S. Air Force, the three air logistics complexes integrated AM into aircraft maintenance and sustainment efforts [14].  The U.S. Navy concluded that $1.49 billion would be saved annually on staffing and organizational costs by applying AM within maintenance programs [15].  Companies such as Boeing, Lockheed Martin, General Electric, and Airbus demonstrated how AM can reduce lead times, component weight, operational costs, and environmental impacts [16].  General Electric (GE) invested $1.5 billion in AM, including research and development, implementing 3D printing technology, and production [17].

AM PROCESSES AND AEROSPACE MATERIALS

Seven AM process categories [18] have been identified, and various materials can be fabricated through AM in each (see Table 1 and Figure 1).  The resulting mechanical performance has improved due to advanced materials and improving manufacturing processes.  Lightweighting is critical for aerospace structures.  Lightening plate and web structures through traditional machining from thick billet requires an estimated 6 lbs of billet needed for every 1 lb of material contained within the final part (or a 6:1 “buy-to-fly” ratio) [19].  AM produces near net shape parts, resulting in significantly reducing this ratio [20].


Table 1:  Process Categories of AM as Defined by ISO/ASTM 52900-15 [18]


Table 1: Process Categories of AM as Defined by ISO/ASTM 52900-15 [18]

Figure 1: Examples Representing Each of the ASTM/ISO 52900-15 Categories of AM Equipment (Sources: Carbon and Impossible Objects, Youngstown State University and University of Texas at El Paso).

Figure 1:  Examples Representing Each of the ASTM/ISO 52900-15 Categories of AM Equipment (Sources:  Carbon and Impossible Objects, Youngstown State University and University of Texas at El Paso).



A diversity of materials can be made using AM, including polymers, metals, ceramics, sand, paper, and composites [13, 21–23].  Materials and processes most relevant to aerospace maintenance and sustainment are shown in Table 2.


Table 2:  Aerospace Relevant Materials Produced Using Additive Manufacturing


Table 2: Aerospace Relevant Materials Produced Using Additive Manufacturing

APPLICATIONS  SPECIFIC TO AEROSPACE MAINTENANCE AND  SUSTAINMENT

With the multiple AM processes and functional materials available, the aerospace industry is using the technology for many applications specific to maintenance and sustainment.  The next subsections explore how the aerospace sector is currently using AM.

Prototyping

One of the original applications for AM is rapid prototyping for fit checks, with significant utility in aerospace maintenance and repair [36].  For example, Fleet Readiness Center (FRC) Southwest created a prototype of a tub-fitting reinforcement.  Once the fit was verified, the part was machined out of aluminum [37].  As computer numerical control (CNC) machining is time consuming, relatively labor-intensive (especially for programming), and possibly capacity-constrained, AM prototypes (Figure 2) can prevent waste due to incorrect geometries or dimensional tolerances.

Figure 2:  A Drill Guide Built With a Desktop Material Extrusion Printer (Source:  Darrell Wallace).



Tooling, Fixtures, and Jigs

The “low-hanging fruit” of AM is the reduction in cost and time for aerospace maintenance and sustainment through fabricating tooling, fixtures, and jigs.  The benefits can be realized nearly immediately without the qualification and certification challenges associated with AM end-use parts.  For each aerospace vehicle, hundreds of fixtures, guides, templates, and gauges can be printed with AM, reducing cost and lead time by 60–97% [38, 39].  An industrial supplier for composite parts has identified 79% savings in cost and 96% savings in lead time by replacing CNC machining with material extrusion to produce tooling [40].

In addition to cost and lead-time savings, AM tooling can be large.  In 2016, Oak Ridge National Laboratory (ORNL) produced a 777X composite wing trim and drill guide using Big Area Additive Manufacturing, as shown in Figure 3.  At that time, the structure was the largest 3D printed object ever and leveraged the carbon-reinforced polymer processing from ORNL [41].

Figure 3: One of the Largest AM-Produced Parts in the World (Source: Oak Ridge National Laboratory).

Figure 3:  One of the Largest AM-Produced Parts in the World (Source:  Oak Ridge National Laboratory).



Military maintenance and sustainment organizations have also leveraged AM for tooling.  Since 2006, the FRC-East Cherry Point has supported the fleet by using AM to create custom tooling [42] and demonstrated material extrusion printed tooling for sheet metal press and stretch forming and composite layup tooling [26].  AM tooling was used to return an AV-8B to flight that was damaged during a hard landing at sea, with polycarbonate material extrusion tooling used to press form sheet metal doublers required for the repair [26].

Aerospace metal castings can also take advantage of AM tooling in an industry where lead times of 10–12 months are common [43].  A team from Autodesk and Aristocast designed a modulating matrix structure for an investment casting pattern to cast a super-light airplane seat frame (shown in Figure 4).  The computer-optimized, lattice structure provided a 35% lighter seat while meeting performance specifications.  The frame was cast in magnesium, resulting in a total weight savings of 56% compared to conventional aluminum subtractive manufacturing.

Figure 3: One of the Largest AM-Produced Parts in the World (Source: Oak Ridge National Laboratory).

Figure 4:  An AM-Enabled Magnesium Investment Casting of an Airbus Seat Frame (Source:  Autodesk).



Binder jetting is used to create tooling for sand casting.  When AM is used for core fabrication, material scrap can be reduced by 90% compared to traditional manufacturing [44].  Other benefits of AM sand casting are reductions in lead time and cost, improved functionality, and increased customization [44].  AM for casting tooling improves lead times and decreases costs by eliminating the need for a hard pattern.  Complex geometries enabled by AM-printed sand molds can reduce weight or improve designs for thermal dissipation.  Furthermore, when AM tooling enables part consolidation of castings, the new cast part can have increased durability by eliminating welds or fasteners.

Repair

AM is utilized for repairing metal aircraft engine parts such as turbine engine parts, blades, compressors, and housings.  When a part is worn or broken, the part is normally scrapped and a new part manufactured; however, with AM, the lifetime of the part can be extended [45].  Parts are repaired by removing the damaged material area and reconstructing the part using the undamaged area [46].  The most common AM process for repair is directed energy deposition (DED).  The value of AM repair is impacted by factors such as inspection for defects, the ability to repair the part in the field, the speed and cost of alternative repair techniques, and the requirement to restore the part to the original form with the same mechanical properties [47].

Laser Engineered Net Shaping (LENS) from Optomec successfully repaired parts used in gas turbine engines [45].  Repairing a bearing housing using LENS was only 50% of the cost of buying a new housing, with the lead time decreasing from several weeks to a few days [48].  One particularly dramatic example is BeAM, a European manufacturer of DED machines, which repaired over 800 aerospace parts and extended the life of the part from 10,000 to 60,000 hours [49].

When AM is used for core fabrication, material scrap can be reduced by 90% compared to traditional manufacturing.

End-Usable Parts

Another application for aerospace and defense is the direct fabrication of end-usable parts.  One of the most visible examples of metal AM parts for maintenance and sustainment has been the U.S. Naval Air Systems Command’s (NAVAIR’s) demonstration of a titanium link and fitting assembly for the engine’s nacelle on the V-22 Osprey aircraft (shown in Figure 5).  This part had to undergo extensive materials and performance testing for qualification and certification before being placed on the aircraft [50, 51].

Figure 5: Titanium Link and Fitting Assembly for the V-22 (Source: Noel Hepp, U.S. Navy).

Figure 5:  Titanium Link and Fitting Assembly for the V-22 (Source:  Noel Hepp, U.S. Navy).



A plastic material extrusion desktop 3D printer was used by the U.S. Marines on the USS Wasp to make a replacement plastic bumper for an F-35B landing gear door (see Figure 6).  In the left photo of the figure, CWO2 Daniel Rodriguez is holding the 3D printed plastic F-35B landing gear bumper for an F-35B Lightning II.  On the right is Sgt. Adrian Willis demonstrating the 3D printer used to print the bumper part.  This replacement part saved $70,000 and several days, as the only way to replace the bumper without 3D printing would have been to order and ship a complete door to the Wasp [52].

Figure 6: (Top) CWO2 Rodriguez Holding the Bumper and (Bottom) Sgt. Willis Demonstrating the 3D Printer (Source: U.S. Marine Corps Photos by Cpl. Stormy Mendez).

Figure 6:  (Top) CWO2 Rodriguez Holding the Bumper and (Bottom) Sgt. Willis Demonstrating the 3D Printer (Source:  U.S. Marine Corps Photos by Cpl. Stormy Mendez).



AM also enables complex designs where material is added only where needed to provide strength, stiffness, interface, or manufacturability requirements; the design freedom can lead to weight savings.  One design team analyzed the benefits of AM for a commercial airplane seat buckle redesigned to save energy  and weight.  By redesigning for AM, the  weight dropped from 155 g to 68 g.  With 853 seats in an Airbus A380, the replacement design would recover a total of a 74 kg, resulting in a lifetime savings of 3,300,000 liters of fuel [53].

GE Aviation demonstrated the combined benefits of weight savings and part consolidation in the next-generation, additively-manufactured LEAP fuel nozzle.  The nozzles were redesigned from a 20-part assembly to a single component, with a 25% weight reduction.  Not only were the nozzles lighter, but more durable and 5x stronger than the original design [54–55].  GE plans to manufacture up to 100,000 parts with AM by 2020 [16].

AM is also revolutionizing manufacturing in space. The National Aeronautics and Space Administration (NASA) has identified AM for remote manufacturing for sustainment of long-duration missions and human exploration [56].  The Made In Space material extrusion printer was installed on the International Space Station (ISS) in November 2014, later followed in March 2016 by the installation of the more capable Additive Manufacturing Facility (AMF) at the ISS [57].  Another exciting application area of AM in space is the potential to print and deploy satellites in orbit, potentially providing a means of reconstituting satellite constellations degraded due to age, natural damage, or combat [58–59].

QUALIFICATION AND CERTIFICATION

The aerospace industry uses qualification, certifications, and quality controls in order to ensure public safety.  The qualification and certification process for aircraft components can cost over $130 million and take up to 15 years, as shown in Figure 7 for a traditional Federal Aviation Administration (FAA) certification approach [32, 60].  Using AM for  direct-part production presents a challenge for qualification and certification, especially for critical components [60].  The AM process is relatively new and, consequently, has few standards and minimal flight heritage.  Therefore, many companies, organizations, and the government are encouraging the creation of standards [32, 61].  Studies have estimated for one given AM process, there are over a hundred variables that need to be controlled to produce stable and repeatable parts [62].  The lack of AM standards results in several barriers for AM implementation—material data are not comparable between companies, different process parameters are used by various AM machine operators, repeatability of results can be insufficient, and few specifications exist to ensure a product is built as specified [8].

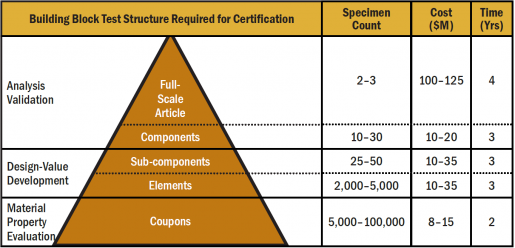

Figure 7: The Traditional FAA Building Block Test Approach for Certification [60].

Figure 7:  The Traditional FAA Building Block Test Approach for Certification [60].



The FAA established the Additive Manufacturing National Team to collaborate with industry, academia, and government agencies in applying current FAA regulations to AM products and developing guidelines to certify structure safety.  One of the first metal AM parts certified by the FAA was GE Aviation’s T25 sensor housing.  GE designed, prototyped, produced, and certified this part in only 4 months and initiated a retrofit on 400 fielded engines [54].

In metal AM processes like powder bed fusion, unique material issues exist that impact qualification and certification.  Mechanical properties are not uniform within a part.  Inherent material anomalies could affect fracture toughness and fatigue (i.e., cyclic loading) strength, including lack of fusion, distributed porosity, inclusions, and residual stress [33].  For AM, an important step in process qualification is monitoring the AM process during part builds to identify process errors detrimental to the component.  Research is ongoing to detect defects while a metal AM build is in progress [63].

Collaboration is necessary to accelerate adopting AM and address qualification and certification issues.  America Makes, a public-private partnership established by the federal government, has focused on addressing AM challenges through government, industry, and academia collaboration [64, 65].  In 2016, America Makes and American National Standards Institute (ANSI) formed the Additive Manufacturing Standardization Collaborative (AMSC) to bring together Standards Development Organizations such as American Society for Testing and Materials (ASTM) International, American Welding Society, Institute of Electrical and Electronics Engineers (IEEE), and the International Organization for Standardization (ISO).  In February 2017, the first version of  a standards roadmap was completed [66].  This roadmap listed existing standards and specifications for AM, identified AM-related standards in development, and outlined gaps  where new standards are needed.

CONCLUSION

AM is a suite of manufacturing processes that can reduce maintenance time and costs through prototyping, tooling, fixtures, jigs, part repair, and spare part production.  Reductions in lead time, cost, and improved buy-to-fly ratio are realized today.  If design changes are permitted, then complex geometric lightweight parts will enable energy-saving and positive environmental impact.

Challenges still need to be overcome to enable more widespread adoption of AM, including process control, geometric tolerances, quality assurance, and repeatability [67, 68].  Process control, known material properties, and confidence in repeatedly obtaining these properties are needed for certification authorities when dealing with flight-critical parts [24, 32].  AM designing is another obstacle.  Engineers taught design approaches for traditional manufacturing now need to adapt to leverage the design freedoms of AM [14, 45].  One study revealed barriers to adopting AM, including cost, lack of trained talent, uncertainty of quality of final product, and printer speed [69].

AM will inevitably play a greater role in aerospace production, maintenance, and sustainment.

The needs for maintenance and sustainment are substantial, particularly for legacy fleets.  The perceived benefits of AM outweigh the challenges.  As a result, AM will inevitably play a greater role in aerospace production, maintenance, and sustainment.
